System solution for Window and Door
with specific design for tropical regions

Patio 130 LS

A highly insulated slide and lift-slide aluminium sliding door: meets the highest requirements with regard to insulation, stability and safety. Available with various opening options. A low threshold option is also available making it a suitable sliding door for building accessibility. A special corner solution makes it possible to open up spaces without any fixed corner element, creating perfect and clear continuity between the indoor and outdoor spaces.

  • 2.5 mm structual wall thickness on the main profiles to ensure the strengh.
  • 60 mm sight surface width of mullion to satisfy modern architectural aesthetic.
  • Glass thickness range from 5mm to 36mm.
  • Intergrated damper in the gear helps to prevent uncontrollable handle rebounding.
  • Stainless roller bogie ensures outstanding durabiltity and corrosion resistance.
    • Air Tightness: 300Pa
    • Water Tightness: 500Pa (STATIC), 1000Pa (CYCLIC)
    • Structure Performance: AAMA TIR – 11
    • Resistance to wind load: 1500Pa (proof load 2250Pa)

Patio 130

Patio 130 IW

Tight Seal Sliding: Rotoi Patio130 IW is setting new standards for sliding openings when it comes to tightness and security, is therefore ideal for all kinds of building. The system guarantees to remain tightly sealed when facing challenges from extreme climate, especially in heavy storms.

  • Available in outside run sash and inside run sash with barrier free threshold
  • 80mm sight surface width of mullion without losing strength and security
  • Possibility to reinforce the mullion from inside and outside
  • S316 Stainless steel track for smoother sliding and long service life
  • Glass thickness range from 5mm to 36mm
    • Air Tightness: 600Pa
    • Water Tightness: 1000Pa (STATIC), 1300Pa (CYCLIC)
    • Structure Performance: AAMA TIR – 11
    • Resistance to wind load: 2700Pa (proof load 4050Pa)

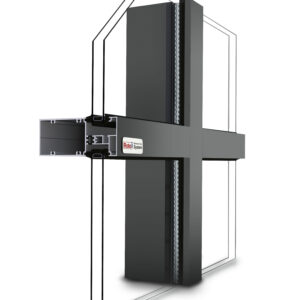

WW150

Window Wall System: an innovative and high quality architectural systems that add to the strength, energy efficiency and longevity of the building envelope. It has a frame depth of 150mm and features a 15mm. Technoform thermal break bar to enhance thermal insulation performance with U-values of 2.5W/m2K

  • Aesthetic
  • Multi-chamber of main profiles
  • Significantly cost reduction compare to curtain wall
  • Safer way of installation
  • Flexible glass option with thickness from 24 to 34 mm
    • Air Tightness: Class 4 (600Pa)
    • Water Tightness: 9A
    • Wind Load: B5
    • Acoustic: STC 37

FN52C

Outward Opening Window System: Developed to allow the typical European inward opening window to cope with the extreme climate in Asia-Pacific region, it embody the descent of German window technology and bring the comfort to the end-users.

  • Flushed frame and sash on outside surface
  • European standard hardware groove
  • Flexible glass option with thickness from 5 – 34mm
    • Air Tightness: Class 4 (600Pa)
    • Wind Load: BE3500
    • Water Tightness: 9A
    • Acoustic: STC 39
