Roto Patio Lift

Hardware for versatile use in Lift&Slide systems

Wide range of applications from 150 to 400 kg sash weight

Can also be used with modern Slim profiles

High-quality, durable roller unit technology for quiet, convenient sliding

Stainless steel Plus roller unit with increased corrosion protection

DesignLocking espagnolette for an appealing appearance and increased comfort

Roto Patio Lift is the hardware for versatile use in aluminium Lift&Slide systems with sash weights from 150 to 400 kg, which is also suitable for modern Slim profiles.

Now suitable for sash weights up to 400 kg and modern slim profiles!
Roto Patio Lift

Extensive range

Roto Patio Lift offers a variety of possible uses for Lift&Slide systems.

Light elements up to XXL elements, with sash weights of 150 kg and 400 kg respectively

Ideal for heavy triple-glazed sashes which meet the requirements of the current German Energy Saving Ordinance (Energieeinsparungsverordnung) and German Thermal Insulation Ordinance (Wärmeschutzverordnung)

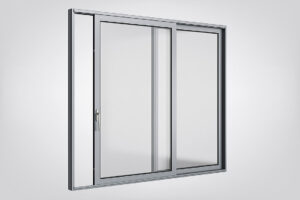

Special Slim versions with slimline, design-oriented profiles for modern architecture

Optional night ventilation for an improved room climate without draughts

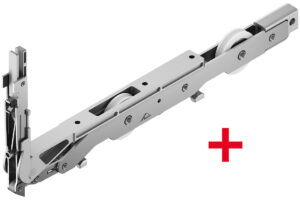

Roller unit

Thanks to their meticulous workmanship and outstanding robustness, the roller units are designed for durability.

Roller unit components made from stainless steel

Rollers made from high-quality PVC mounted on ball bearings for smooth, quiet operation

Stainless steel Plus roller unit

Stainless steel Plus roller units reliably ensure long-term functionality, even in extreme conditions.

With increased corrosion protection, especially for coastal regions

Ball bearings made from high-quality stainless steel for reliably ensuring long-term functionality

Corrosion protection 1000 hours (proven via salt spray test)

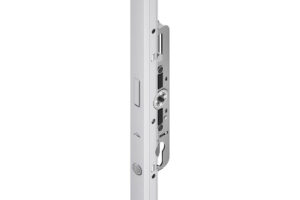

High-quality, easy-to-install espagnolettes ensure efficient processing.

Quickly installed thanks to form-fitting connection with the roller unit

Set up with profile cylinder for greater security

Simple and convenient to operate

With integrated dampers from a sash weight of 300 kg

Optionally available with individual customer logo (info clip)


For greater operating convenience and appealing design.

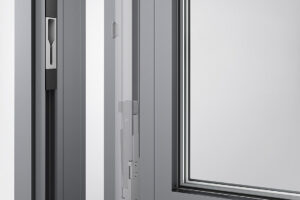

With the DesignLocking espagnolette, the locking cam does not protrude into the access area, but is located in the espagnolette and is moved with the sash.

The striker that looks like it is flush with the surface impresses on the frame side.

Depending on the profile used, significantly shorter processing time by avoiding routing work


Individual design options offered by modern handles.

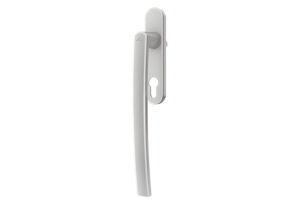

Handles in the classic Roto Line design

Uniform appearance possible throughout the entire building

Optionally available in an uncoated version for individual colouration

Technical data

Sash widthMax. 3000 mm
Sash heightMax. 3100 mm
Sash weightMax. 400 kg
Roller unit installation spaceGroove depth 30 / 42 mm, groove width 16 / 18 / 22 mm, depending on version


Installation instructions, installation videos, catalogues, brochures …

Download in the media portal

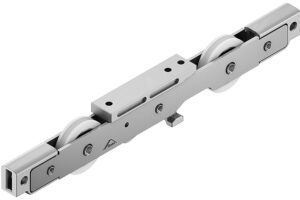

Additional roller unit 400

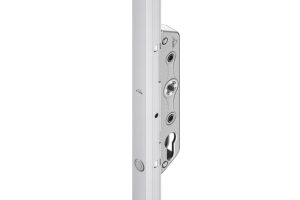

Espagnolette 400

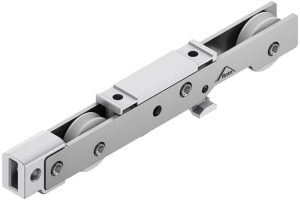

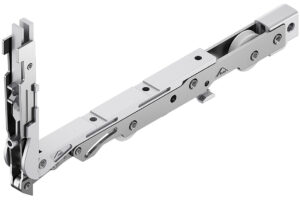

Additional roller unit Slim 200
Roto Line handle

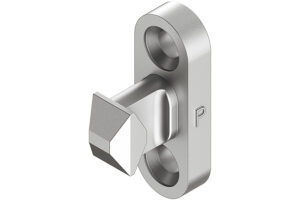

Locking cam

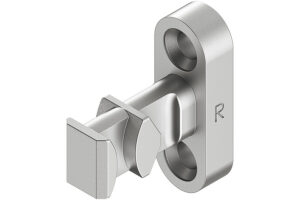

Locking cam for night ventilation

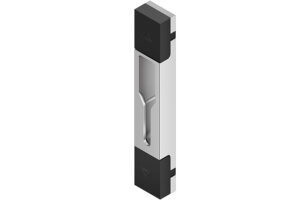

DesignLocking striker
